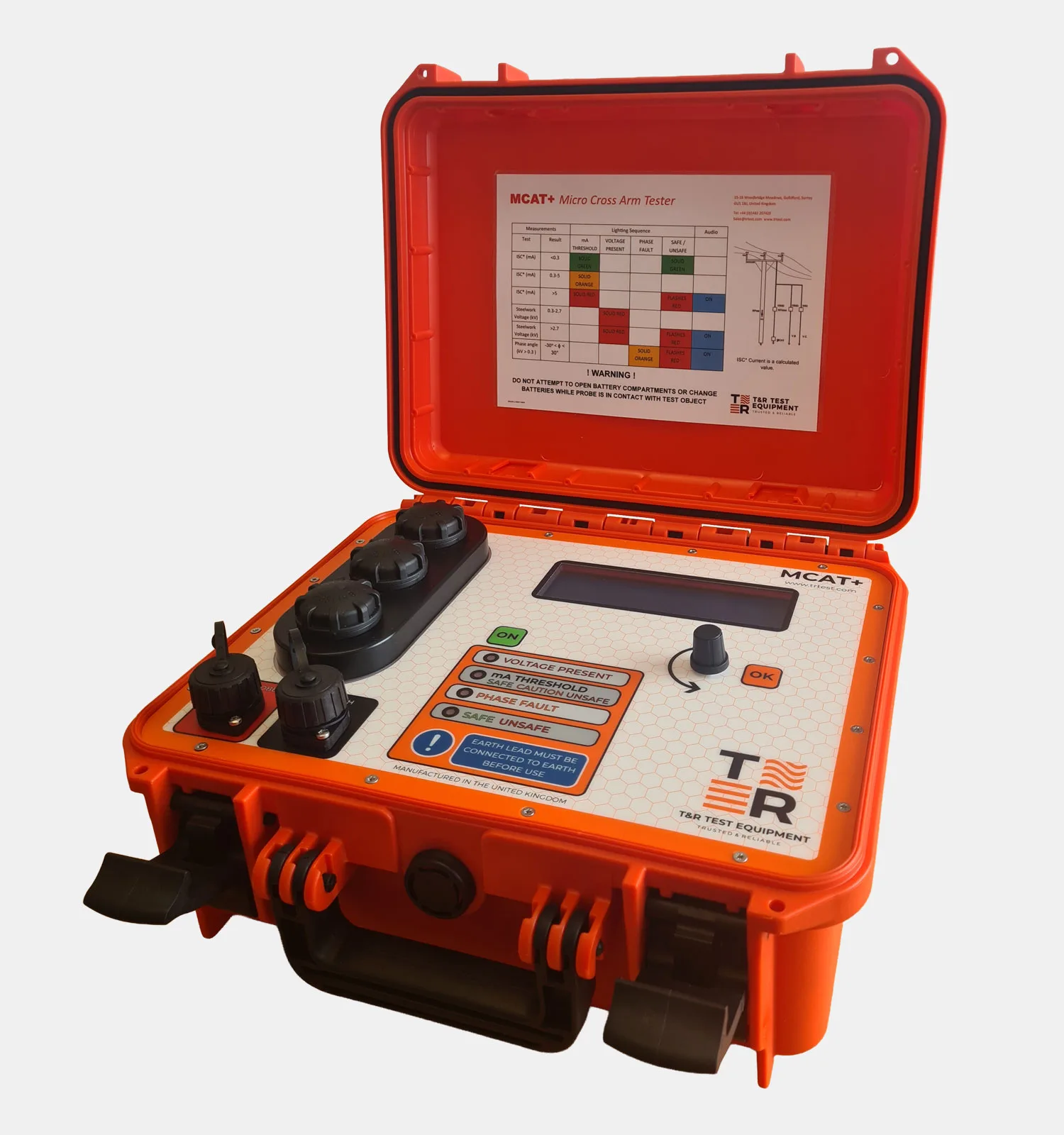

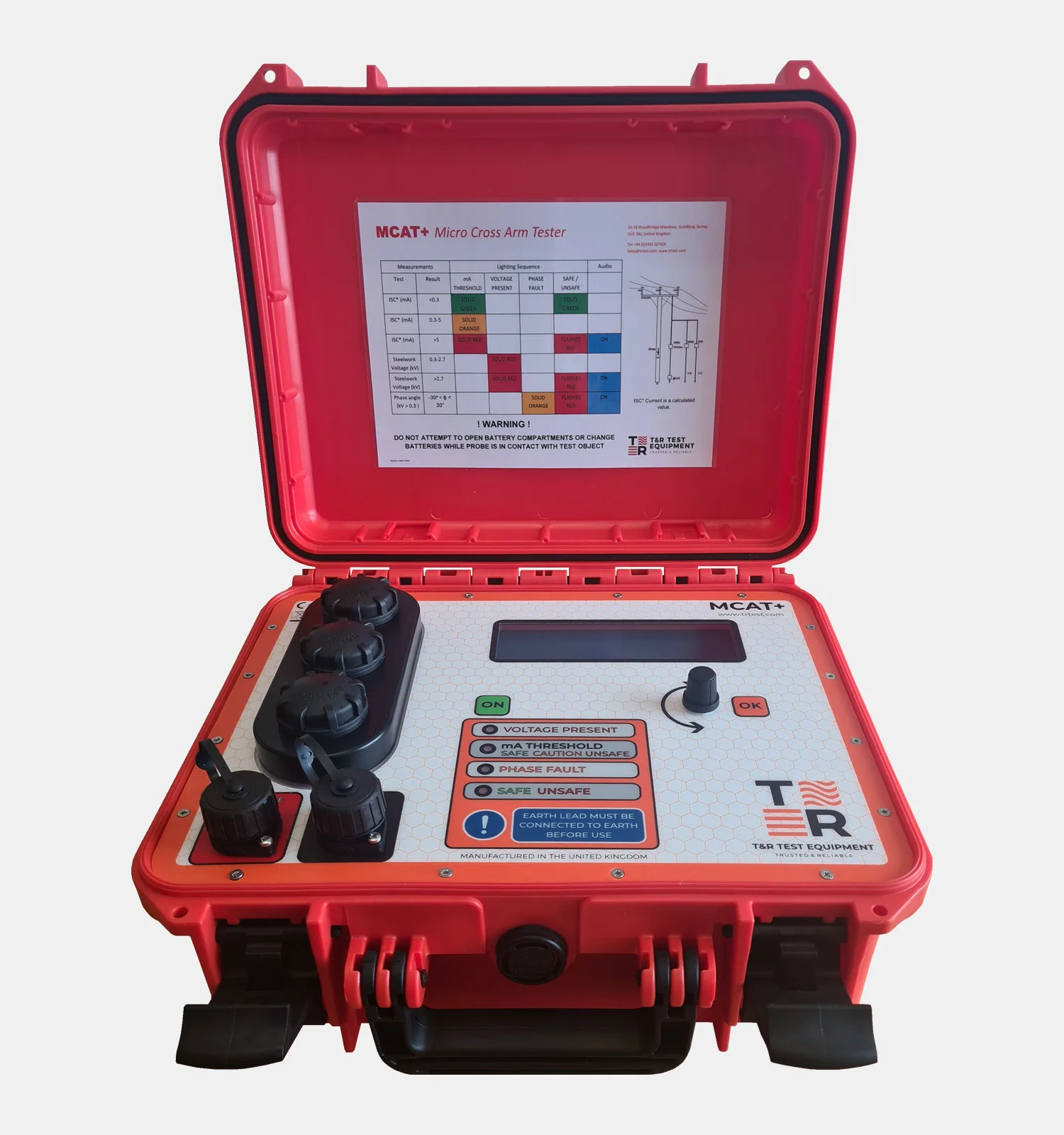

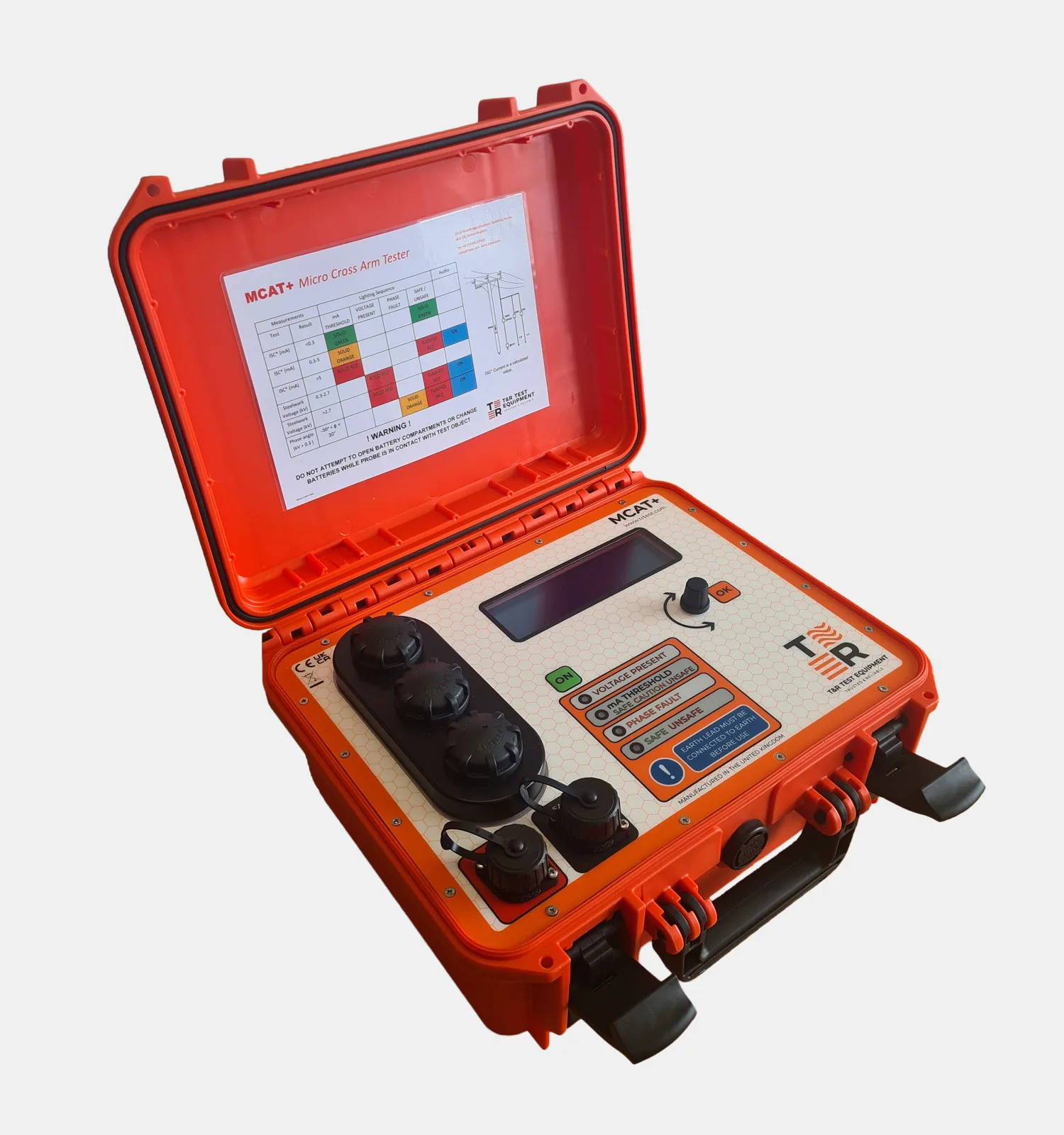

The MCAT+ is a compact, battery-powered instrument designed to assess the electrical safety of unearthed wooden poles on 11kV overhead line systems.

  • Detects faulty insulators and unsafe cross arm conditions
  • Measures prospective short circuit current (ISC)
  • High-contrast graphic LCD for clear readings outdoors
  • Built-in self-test and probe validation functions

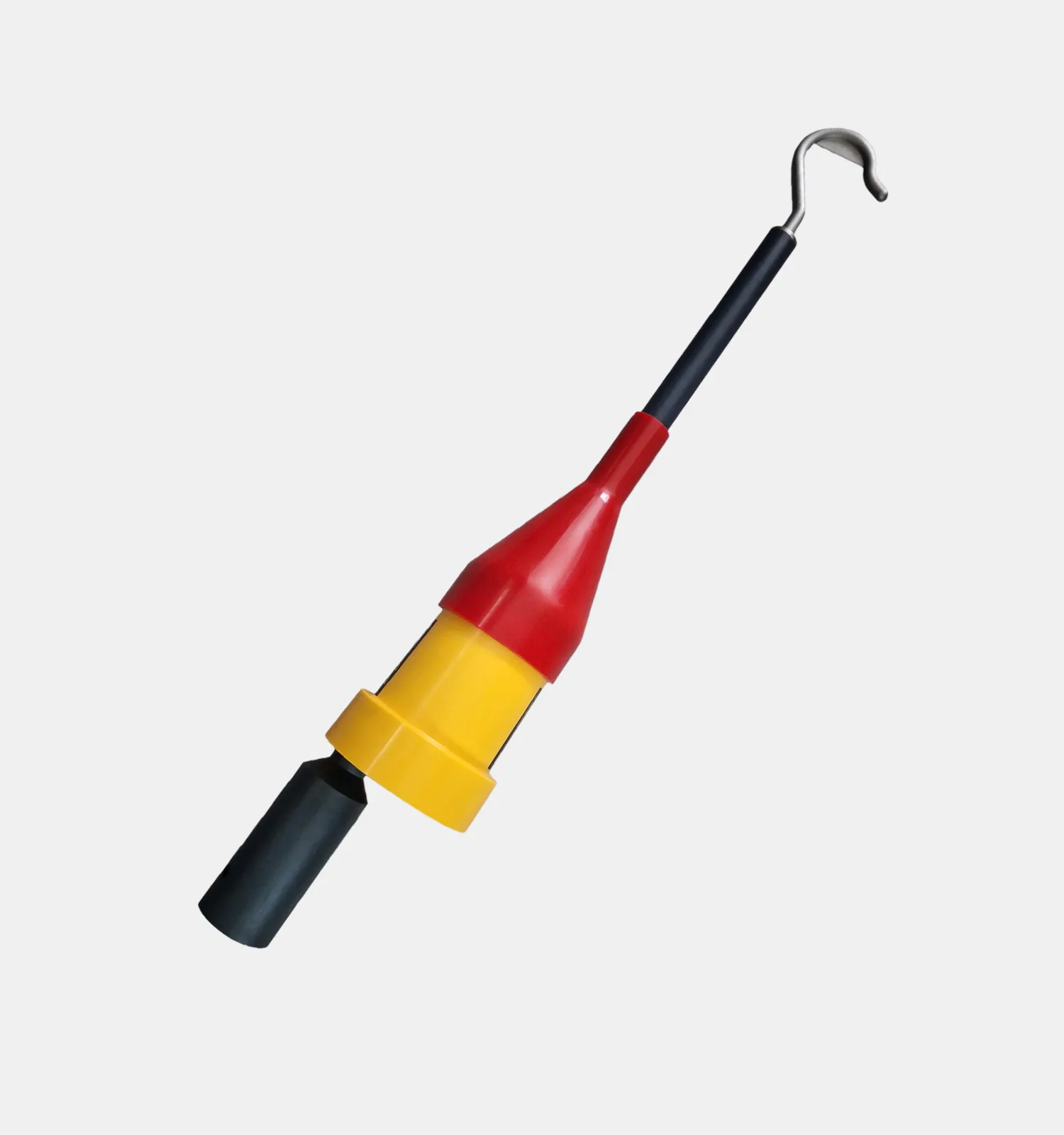

  • Includes WPC1000TX wireless phase comparator transmitter
  • Battery powered and portable for field use

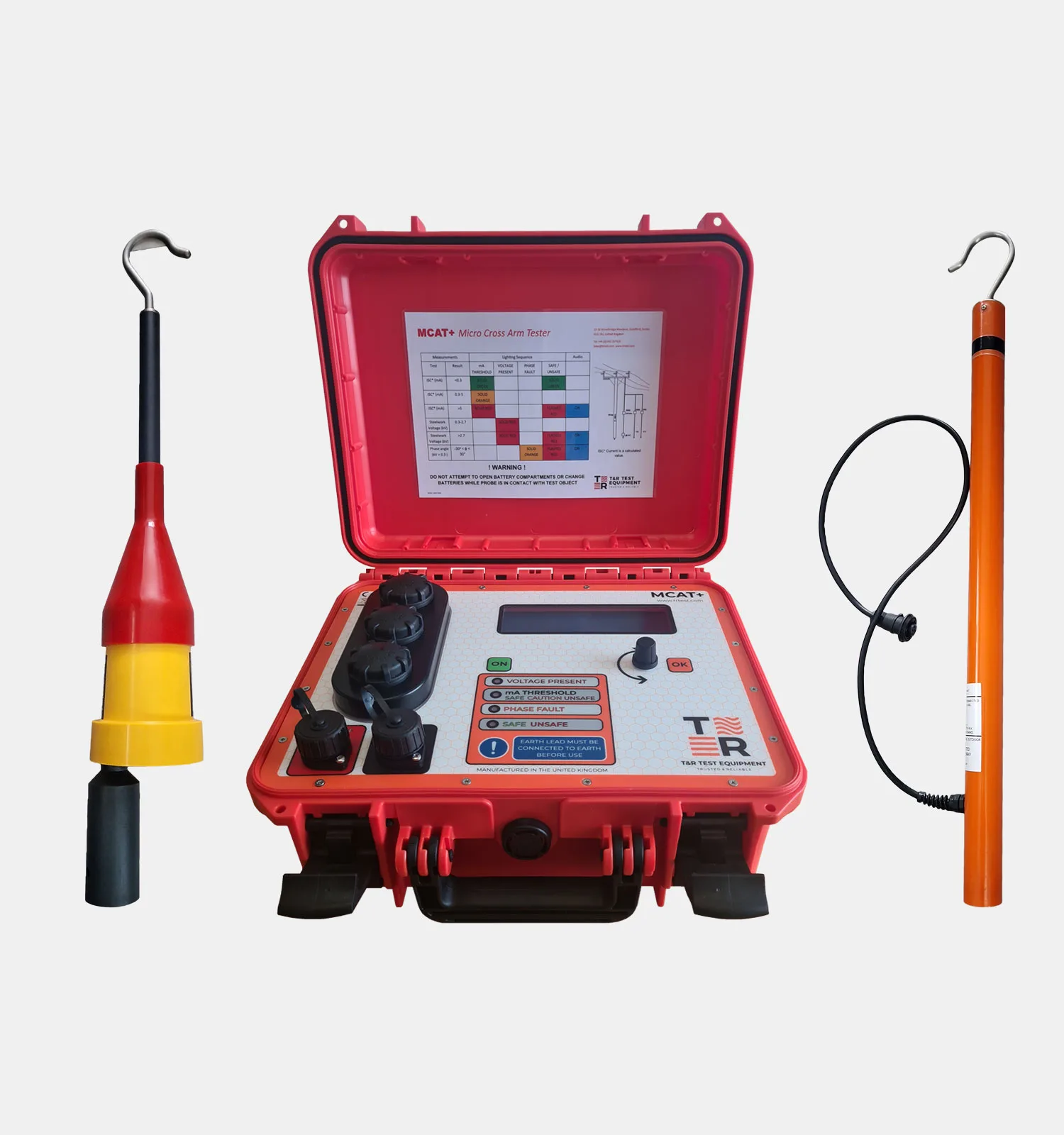

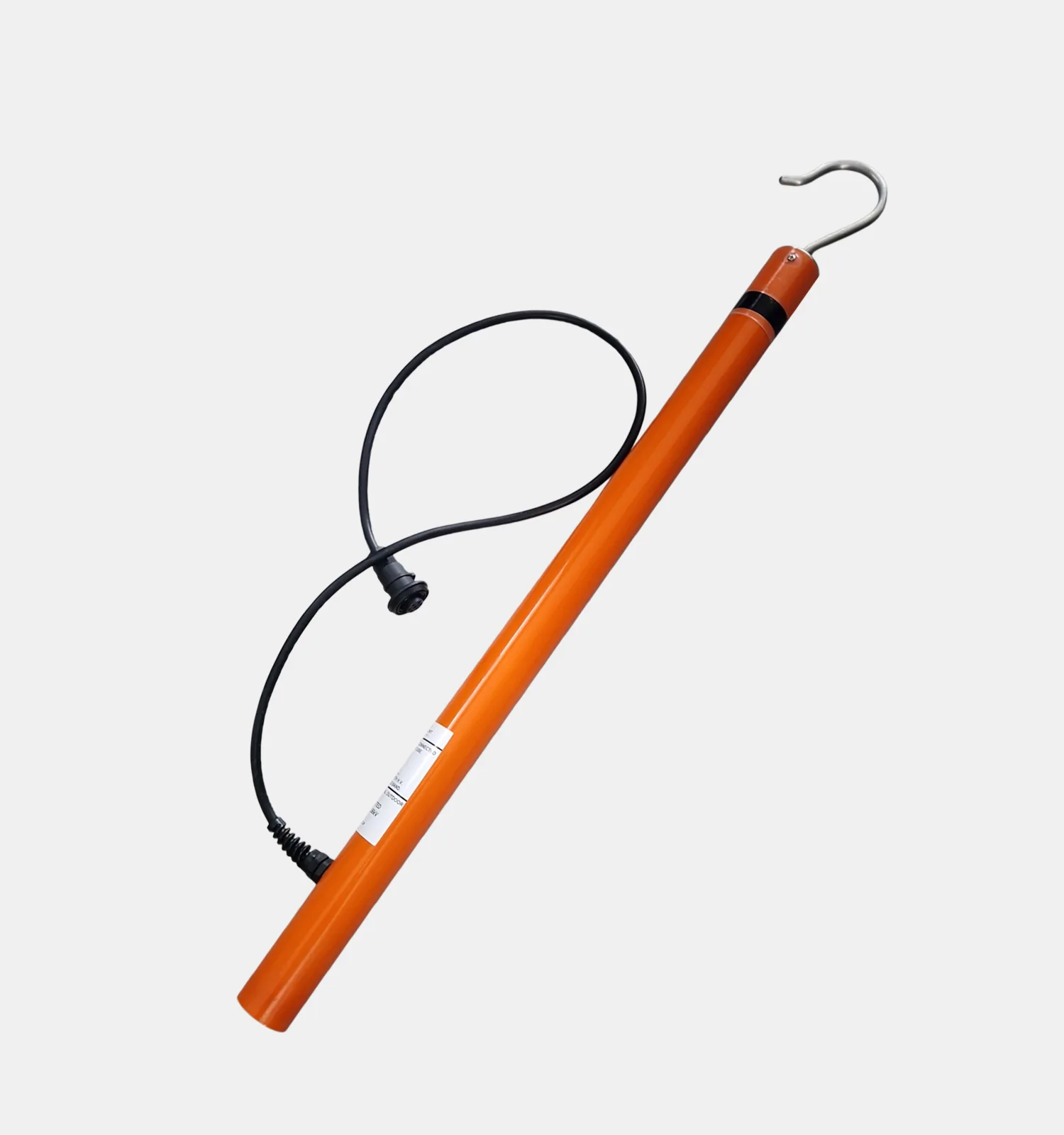

  • Supplied with HV probe, leads, and earthing stick
  • Complies with IEC 61481-1 and BS EN 61243-2 standards

Description

The MCAT+ Micro Cross Arm Tester is a compact, portable instrument designed to detect faulty insulators and measure prospective short circuit current (ISC) on 11kV unearthed wooden poles. It supports both single-phase and three-phase overhead line systems. As a result, it helps engineers verify pole safety before energisation, improving reliability and reducing risk.

Designed for 50Hz networks, the MCAT+ works in conjunction with the WPC1000TX wireless transmitter. It compares the phase relationship between the live conductor and the cross arm to detect insulation faults. In addition, the unit will automatically inhibit testing if the cross arm voltage exceeds 2.7kV, thereby protecting both user and equipment.

Voltage measurements are precise, with accuracy rated at ±1% up to 11kV and ±5% above 11kV. Furthermore, the device uses four LED indicators and an audible alarm to signal test results clearly. The ISC level is displayed using a simple pass/fail threshold: safe (<0.3 mA), caution (0.3–5 mA), and unsafe (>5 mA).

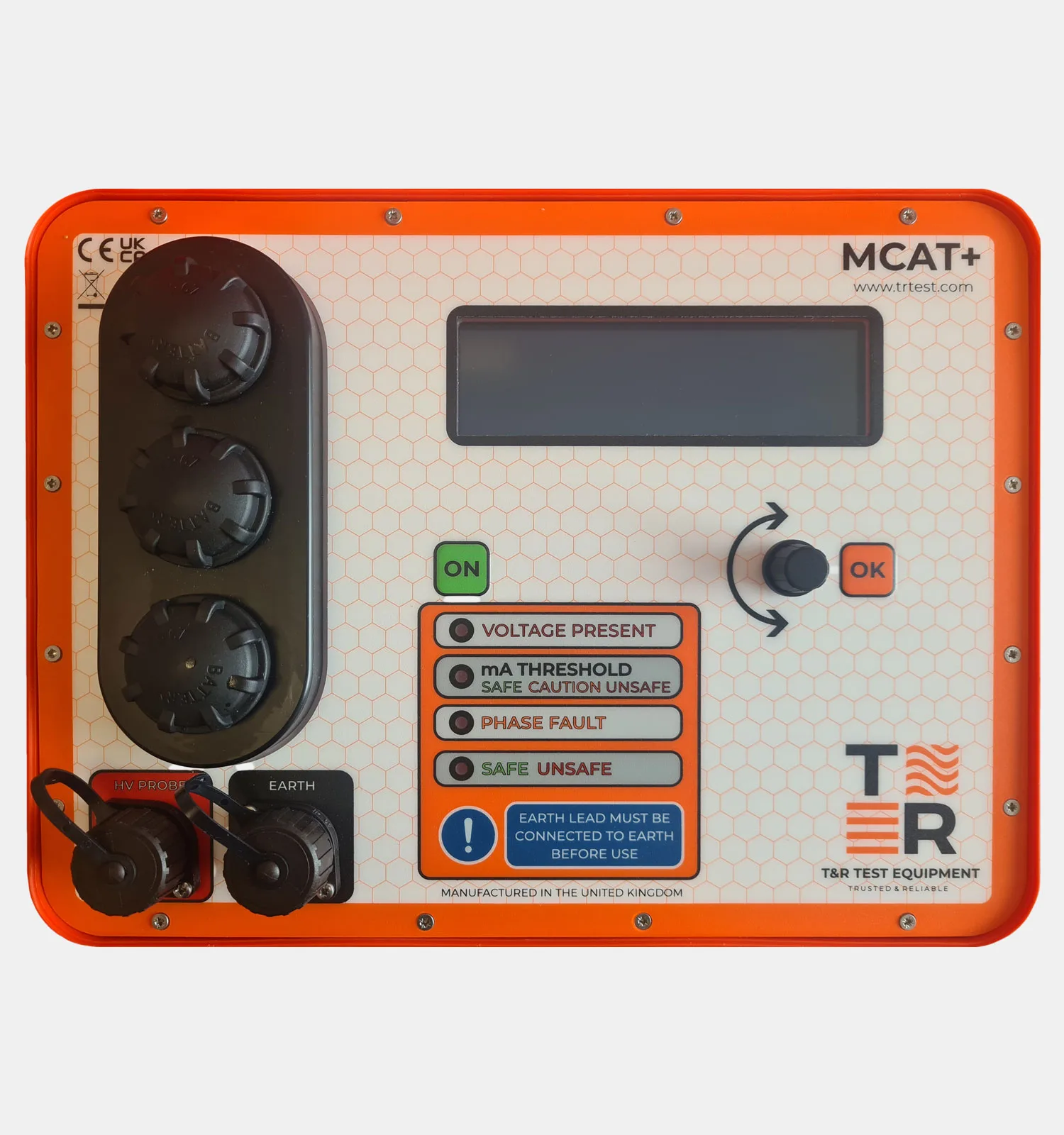

The test process is supported by a high-contrast 240 × 64 graphic LCD, which remains visible even in bright outdoor conditions. Moreover, the user interface features a straightforward encoder and push button, allowing fast and intuitive navigation. A built-in self-test routine and probe validation function further enhance safety and user confidence.

The MCAT+ operates reliably in challenging environments, with an operating temperature range of -25°C to +55°C. It runs on six 1.5V C-cell batteries, while the transmitter uses a 9V PP3 battery. Thanks to its lightweight and rugged construction, the unit is ideal for demanding field applications.

Most importantly, the MCAT+ is built to IEC 61481-1 and BS EN 61243-2 standards. Therefore, it ensures both compliance and peace of mind during live line inspections, cross arm safety checks, and insulation condition assessments.

Our partners, including AcutestAlpha ElectronicsCuthbertson LairdNorwich Instrument Services, and PASS Ltd offer the MCAT+ in the United Kingdom. If you are based outside of Great Britain, you can order the product through our worldwide distribution network.

MCAT+ Operating Manual

Download

MCAT+ Datasheet

Download

MCAT+ Start Guide & Lid Label

Download

Additional information

Base Unit Dimensions

336 x 300 x 148 mm

Base Unit Weight

3.2 kg

Probe Dimensions

850 x 45 mm

Probe Weight

1 kg

WPC1000TX Dimensions

180 x 100 mm

WPC1000TX Weight

1 kg

Supplied Accessories

A257-0001 MCAT+ Probe Lead
A257-0002 MCAT+ Earth Lead
G257-0009 Earth Stake
DDM5008 60mm Hook (Probe)
CMH0297 40mm Hook (WPC1000)
DFH5039 250mm Electrode Extension (WPC1000)
DDC5025 Bowthorpe Rod Adaptor (WPC1000)
DDC5054 Universal Star Wheel Adaptor (WPC1000)
DDM5003 Polymer Cleaning Kit

Optional Accessories

A257-0003: 5m Probe Lead Extension
