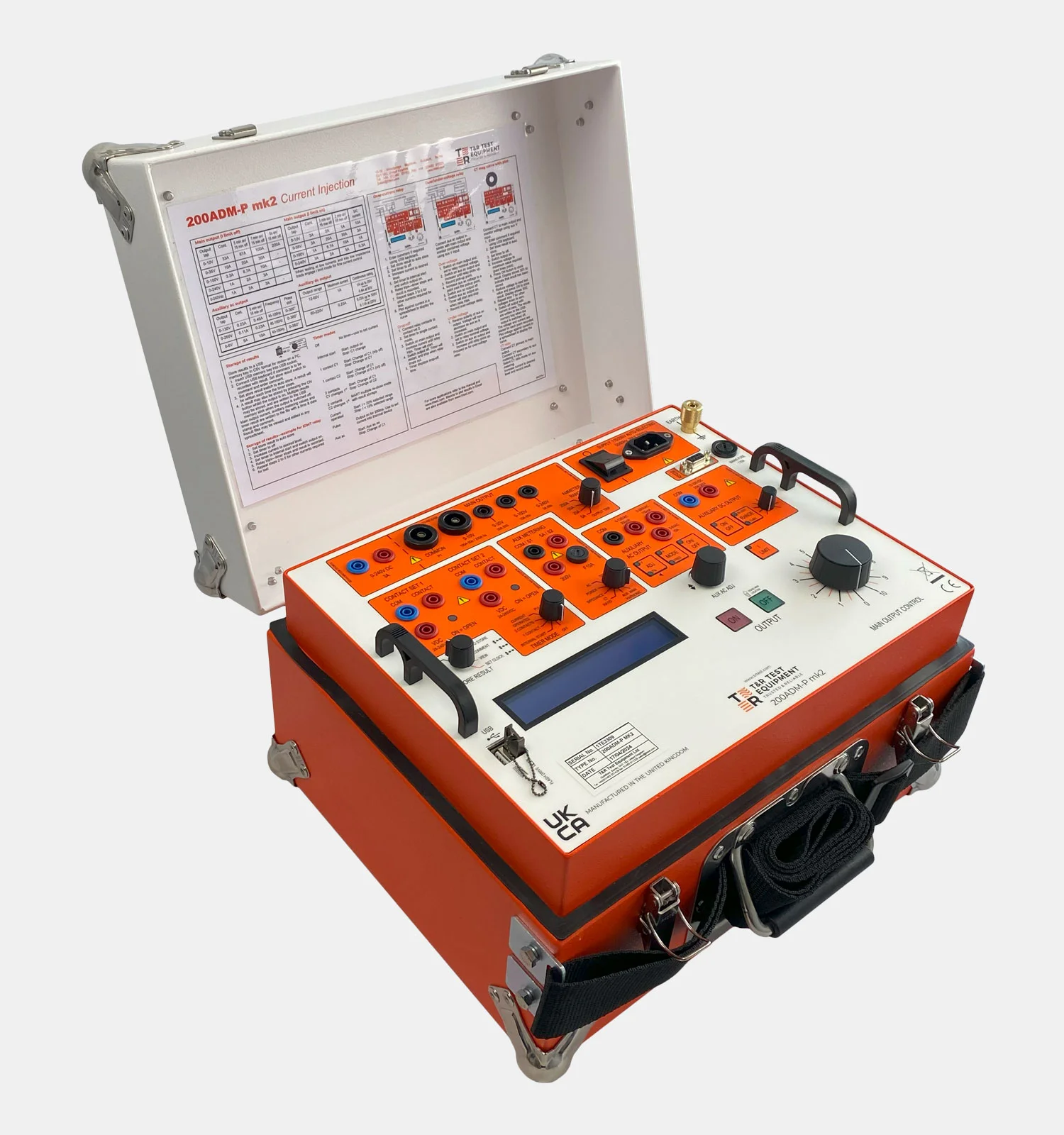

200ADM-P Mk2 Secondary Current Injection Test Set

Rated 0 out of 5
(be the first to review)

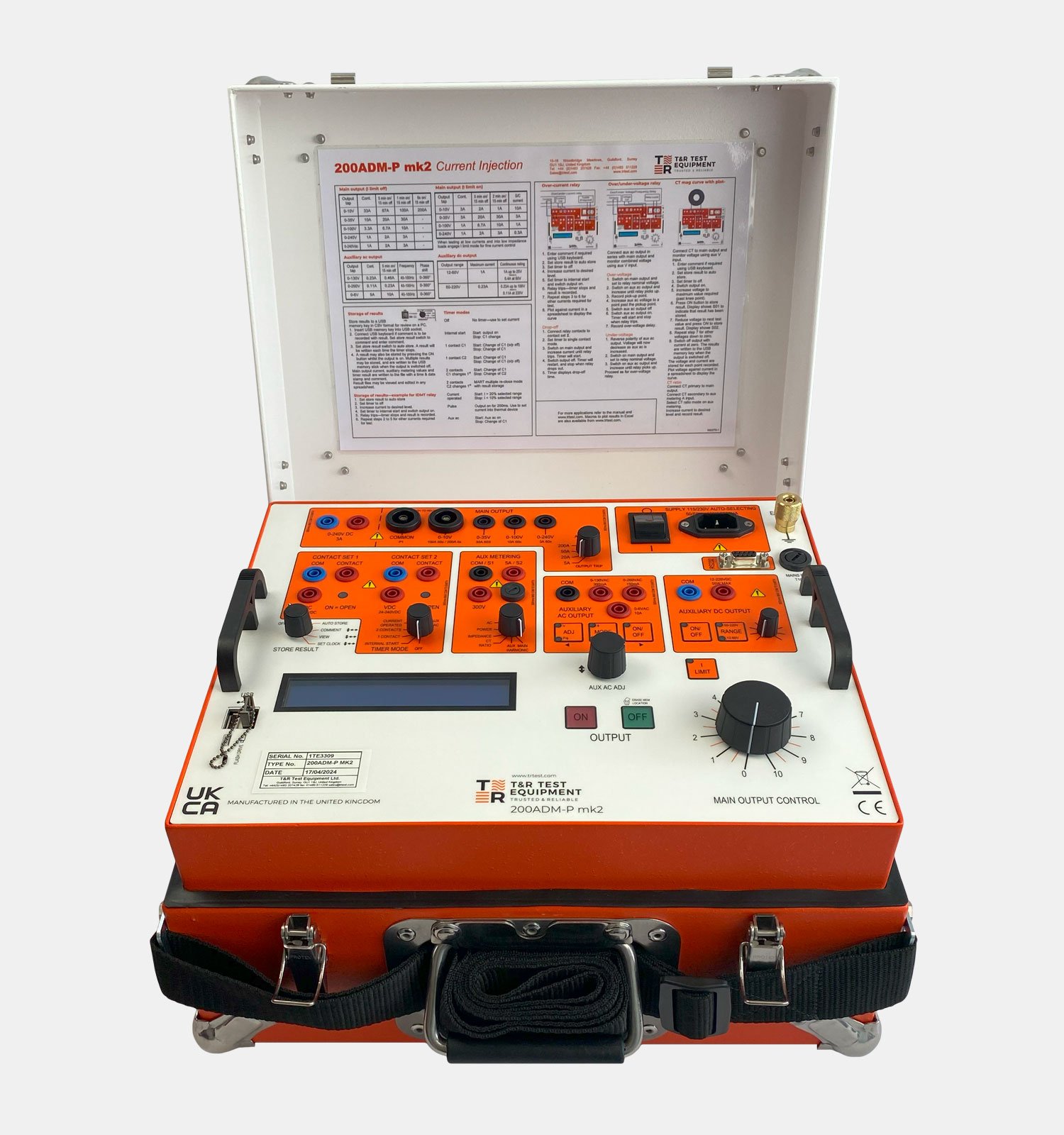

200ADM-P Mk2 is a secondary current injection test set with a wide range of advanced features including phase shift, data storage and harmonic analysis.

  • 0-200A output current
  • True RMS metering with 1 cycle capture
  • Variable auxiliary ac voltage/ current output with phase shift
  • Auxiliary metering input V, f, Φ, Z, P, S, PF, CT ratio, harmonics & more
  • Variable auxiliary output 12-220Vdc
  • Multi-function auto-ranging timing system
  • Current limit mode for fine control
  • Data storage to USB memory key including waveform & harmonics USB keyboard/printer interface
  • Automatic mains voltage selection

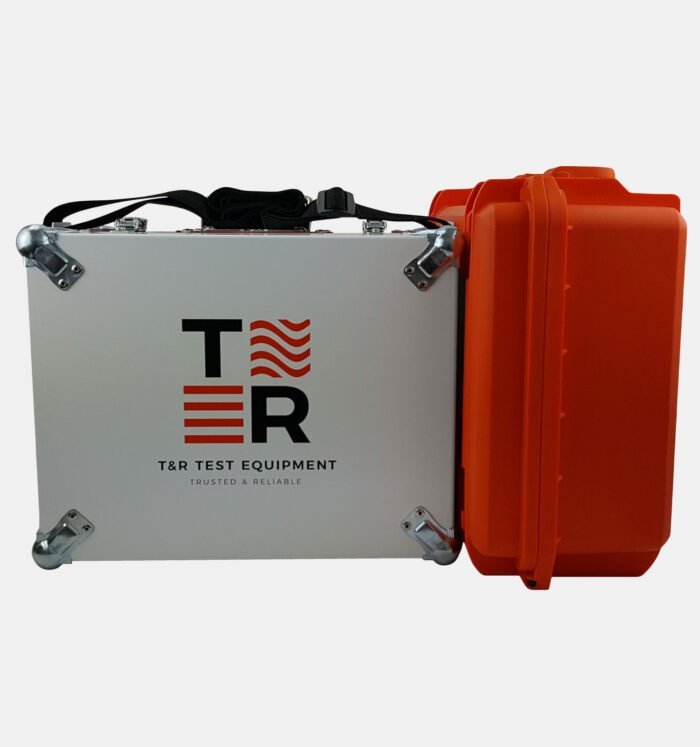

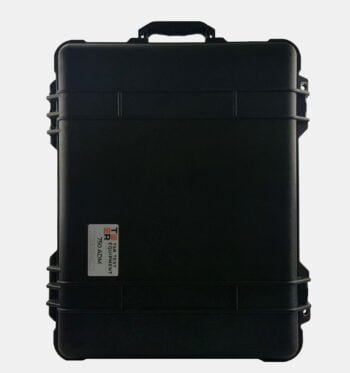

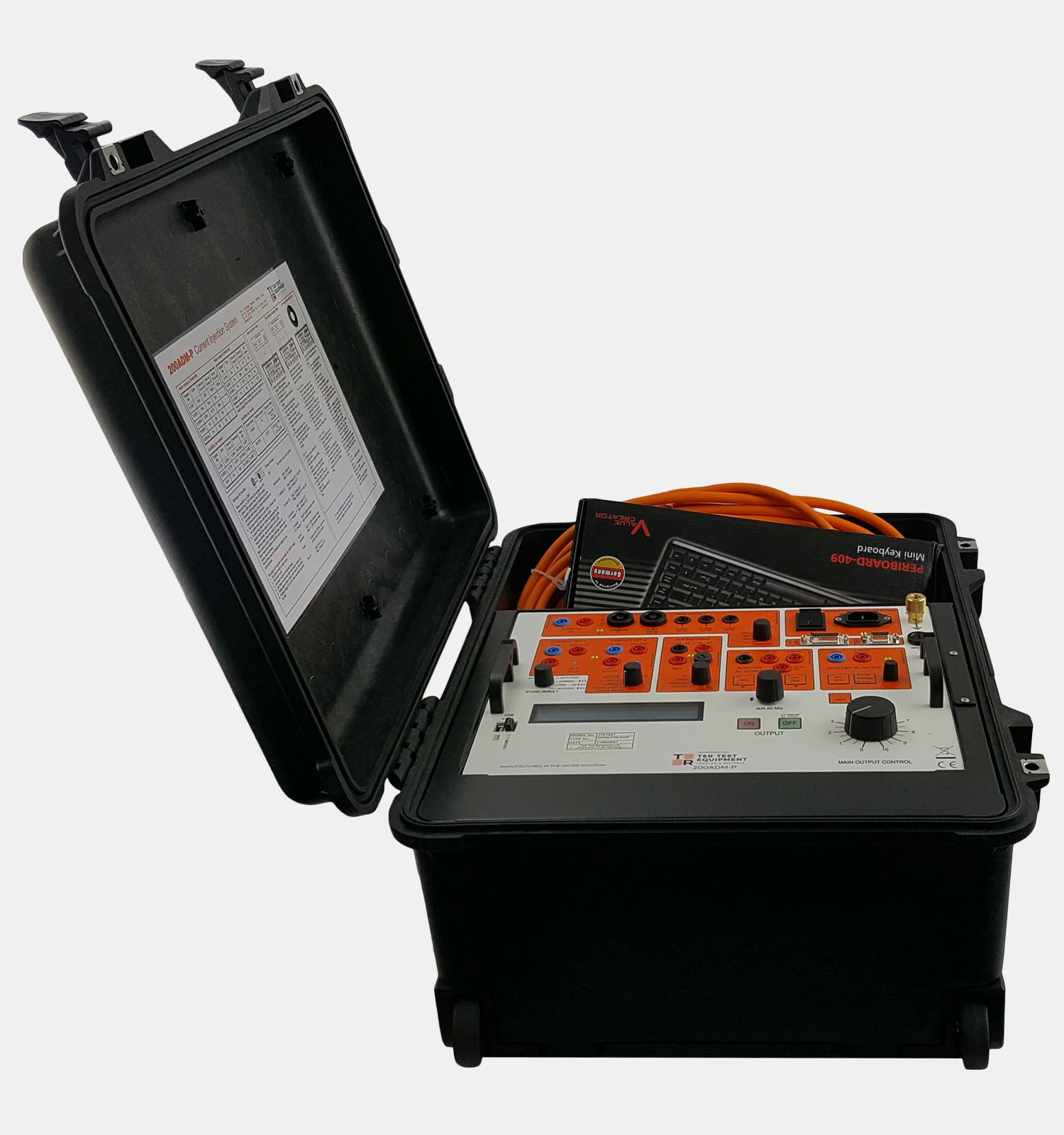

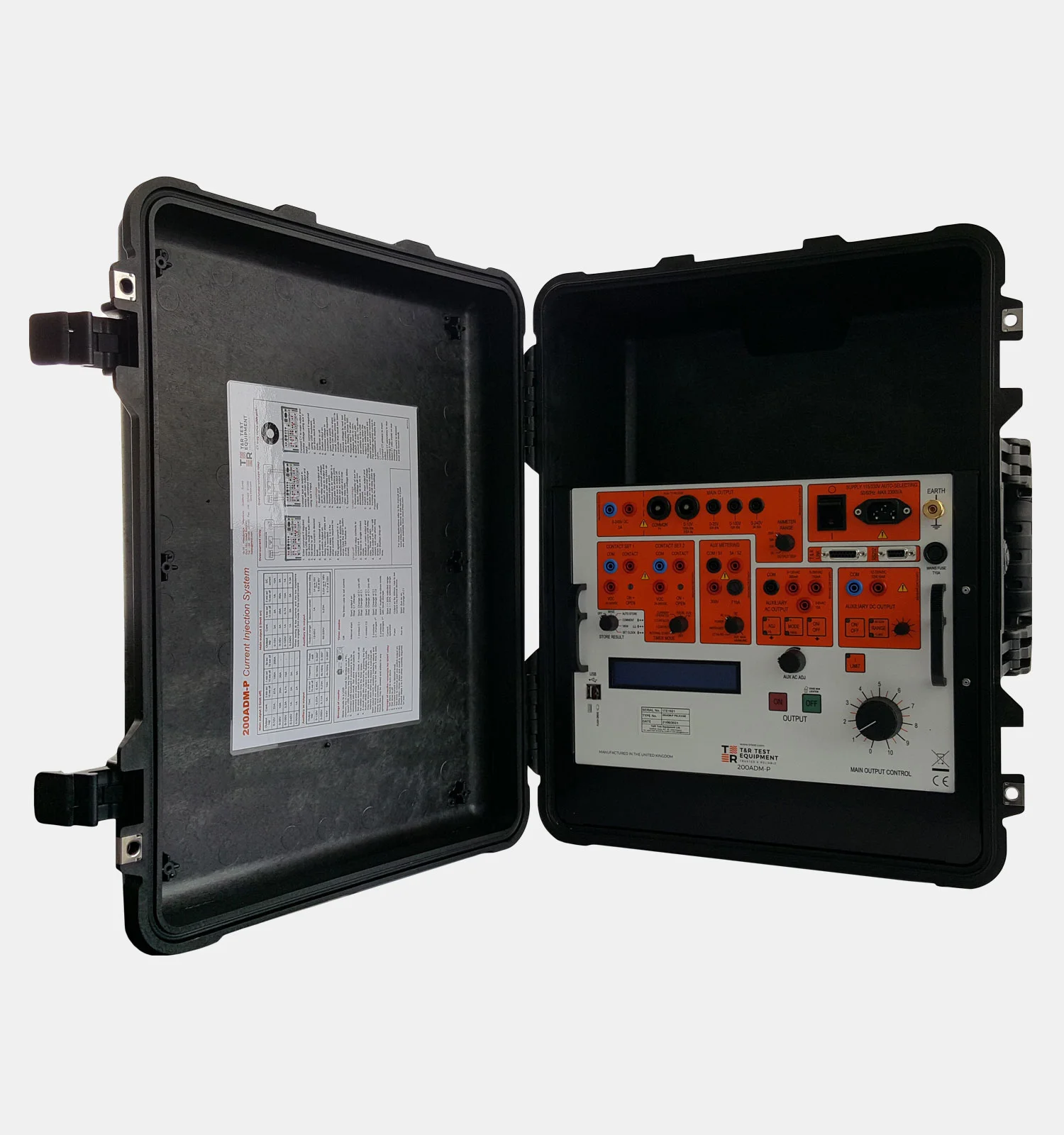

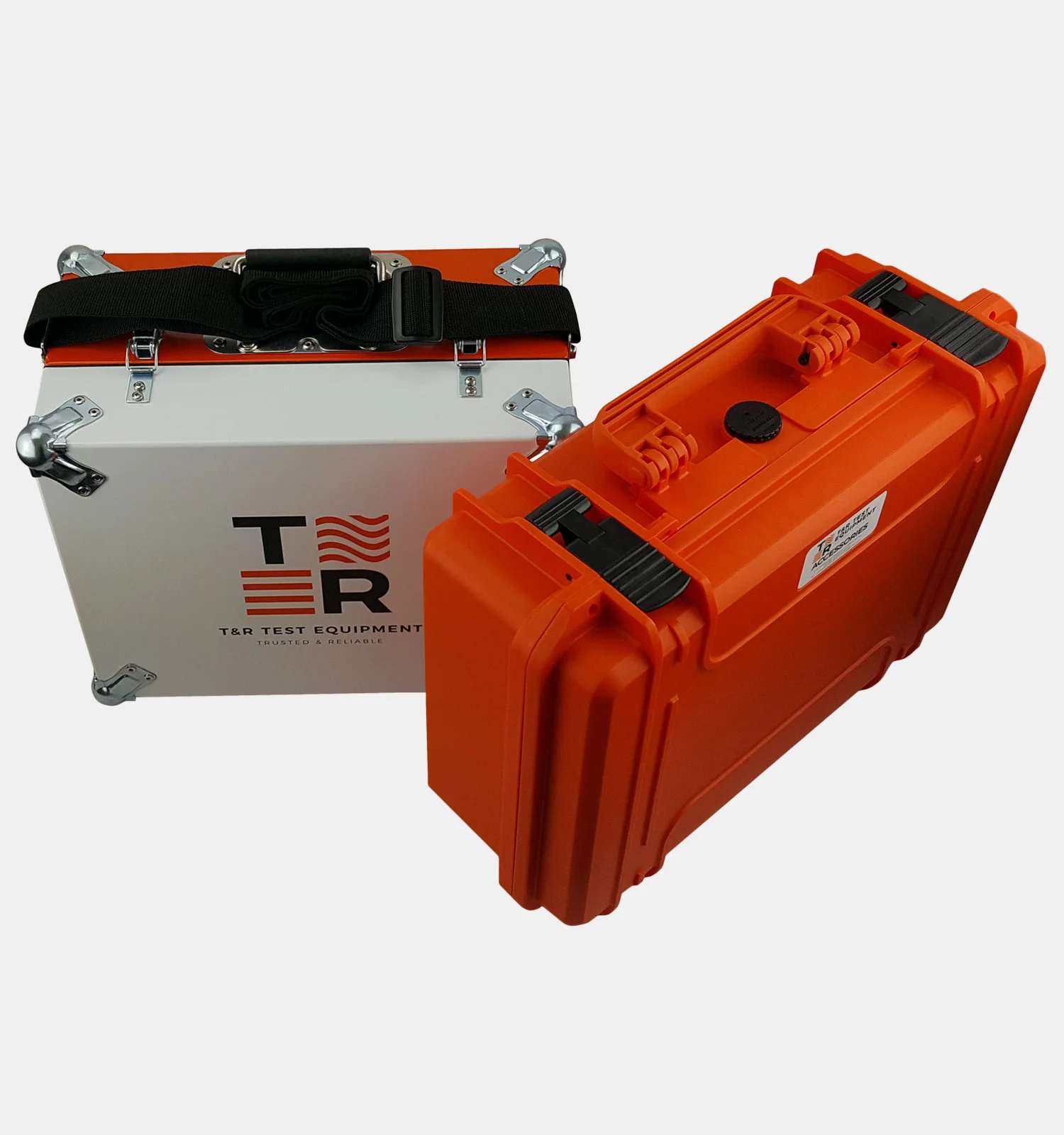

  • Available in Metal or Pelican case

Description

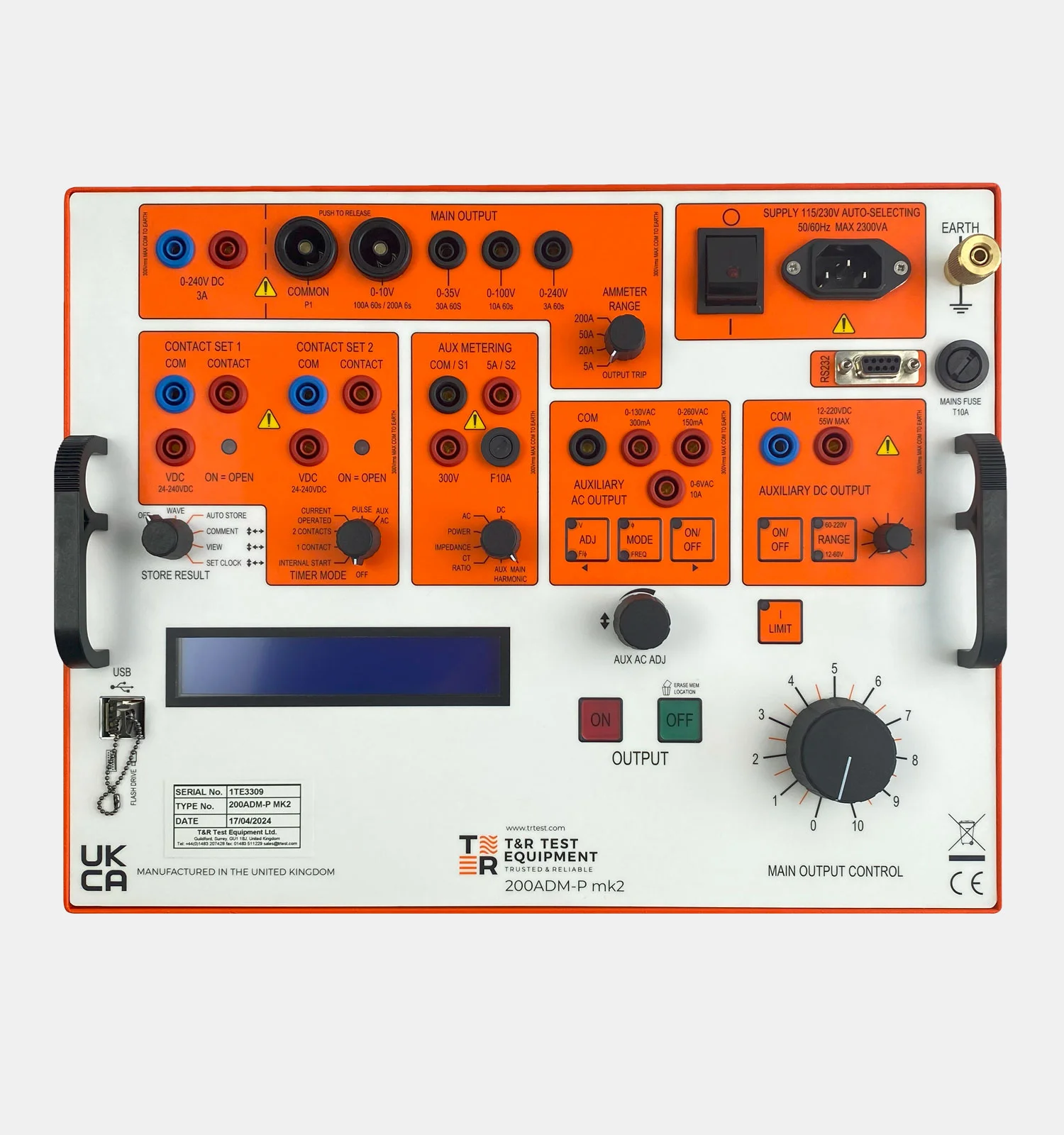

The 200ADM-P Mk2 Secondary Current Injection Test Set is a versatile testing solution that enables users to inject currents ranging from 1mA to 200A. The device’s main outputs can produce voltages up to 240V, making it possible to test high impedance current relays. Instrument features true RMS metering, which provides single cycle capture, and users can set the full-scale meter and trip level independently of the selected output with four current ranges.

To ensure safety and reliability, the device uses industry-standard safety connectors throughout. The 200ADM-P Mk2 also has a flexible auxiliary AC output that can adjust phase and frequency and be used up to 260V for voltage relays or up to 10A for current relays. The auxiliary metering module allows AC and DC voltage, current, and frequency measurement, and it can take measurements with the main current output to meter phase angle, power, impedance, CT ratio, and harmonics. Additionally, the device features a variable stabilized DC supply with current limit to power the relay under test.

The device includes a comprehensive timing system linked to the outputs, allowing quick and accurate measurement of trip times, reset times, and reclose times. The timer features a current operated mode, which accurately tests instantaneous trips. The instrument also has two USB host sockets for connecting to a memory key, keyboard, or printer. Users can store the results of every test in spreadsheet format on the memory key, along with a comment against each result. They can also store a graphics file of the waveform and record harmonic analysis results.

Overall, the 200ADM-P Mk2 Secondary Current Injection Test Set offers a versatile and reliable testing solution for high impedance current relays, voltage relays, and current relays. Its advanced features and safety measures make it a suitable choice for accurate and efficient testing.

Our partners, including AcutestAlpha ElectronicsCuthbertson LairdNorwich Instrument Services, and PASS Ltd offer the 200ADM-P Mk2 in the United Kingdom. If you are based outside of Great Britain, you can order the product through our worldwide distribution network.

200ADM-P Mk2 Operating Manual

Download

200ADM-P Mk2 Datasheet

Download

Additional information

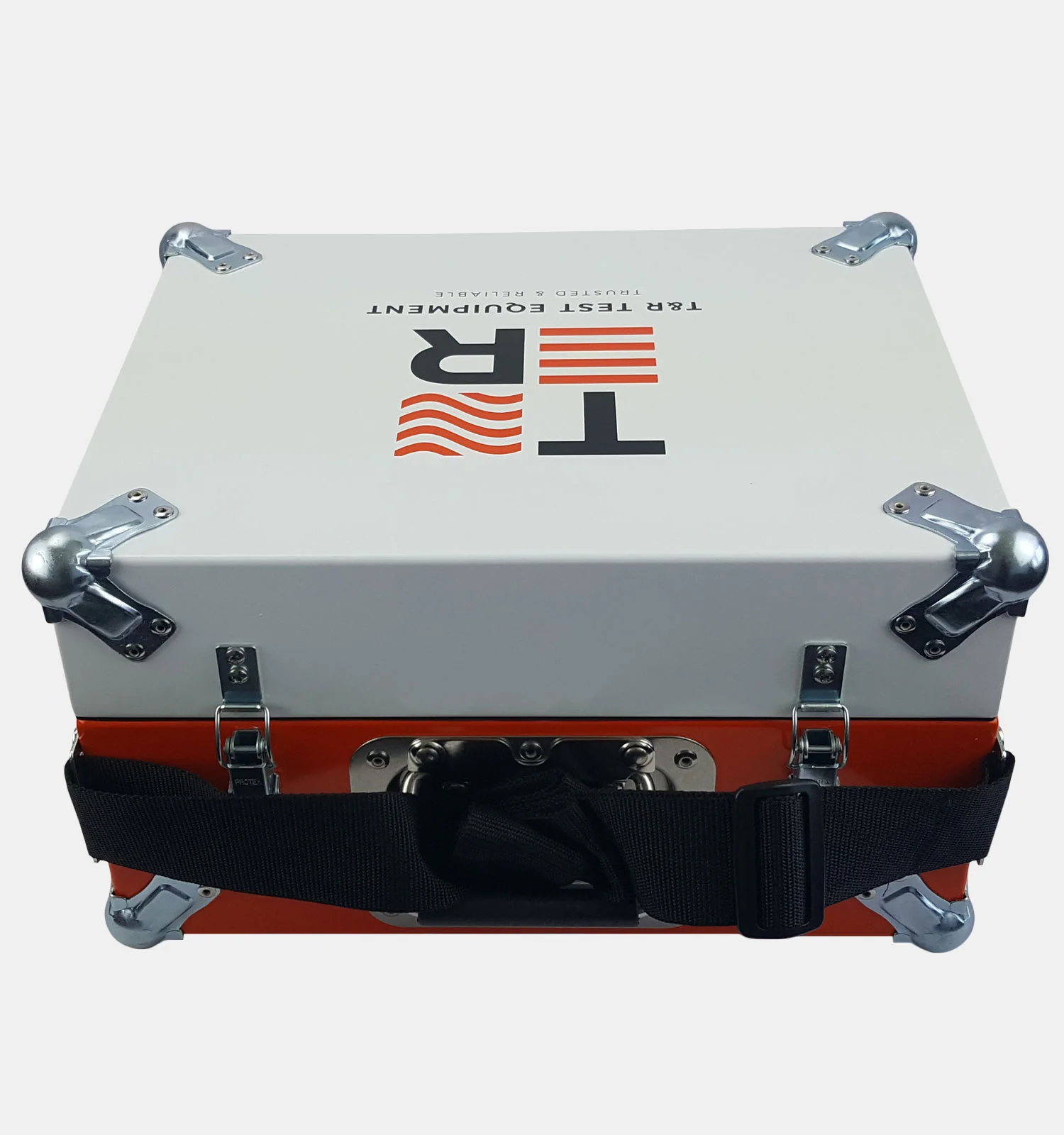

Metal Case Weight

19.5 kg

Metal Case Dimensions

380 x 314 x 221 mm

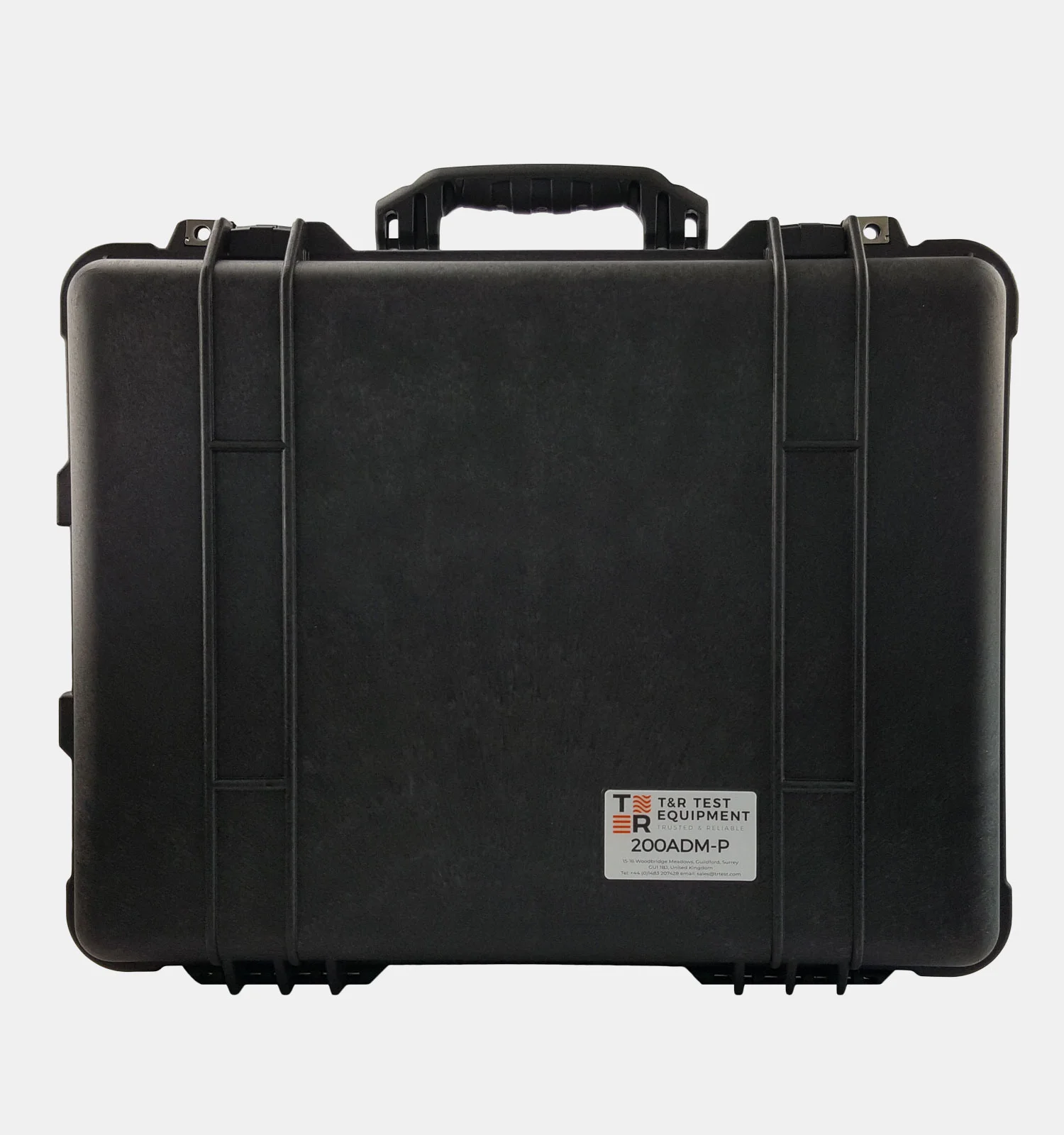

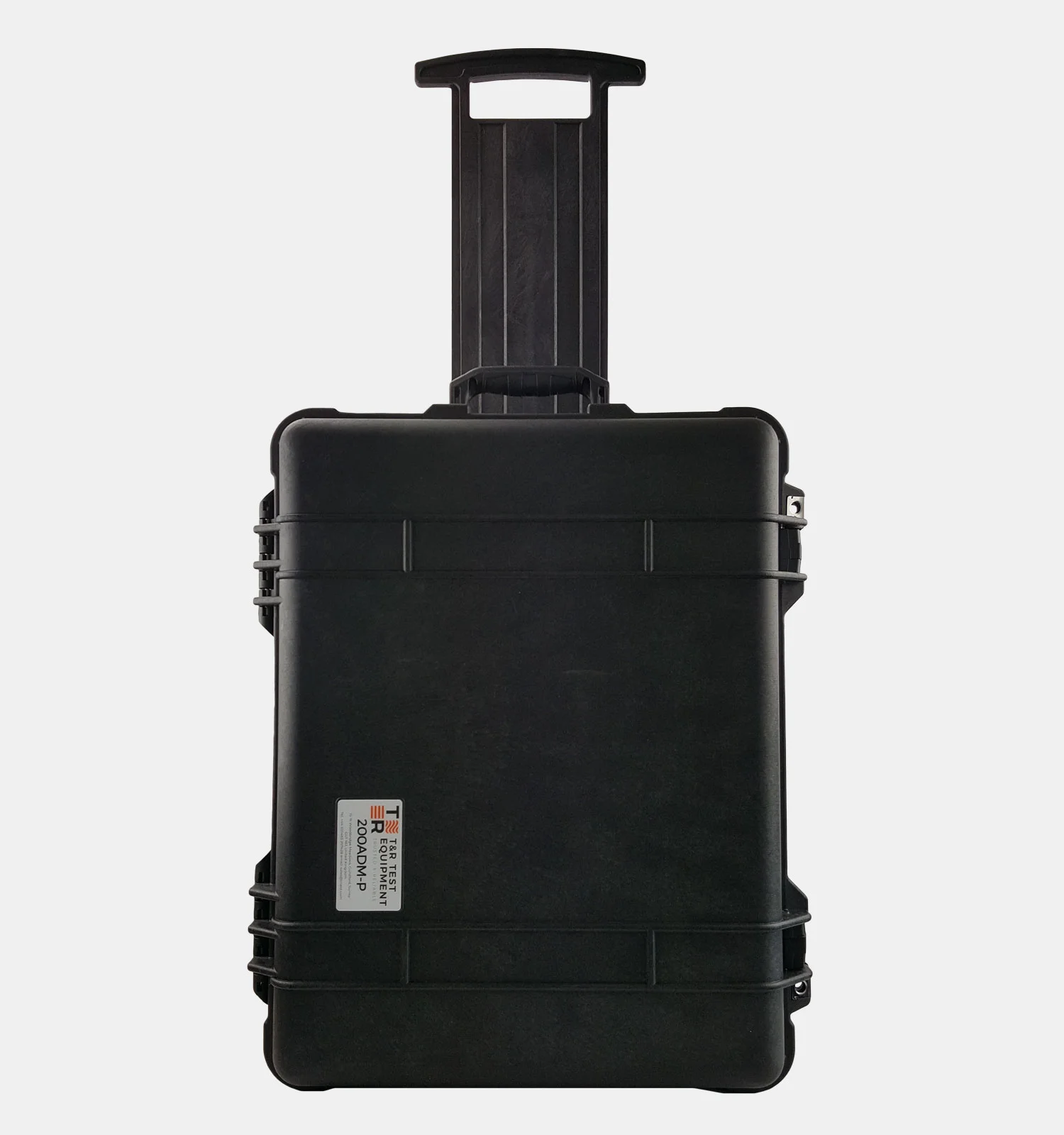

Pelican Case Weight

22.6 kg

Pelican Case Dimensions

560 × 456 × 265 mm

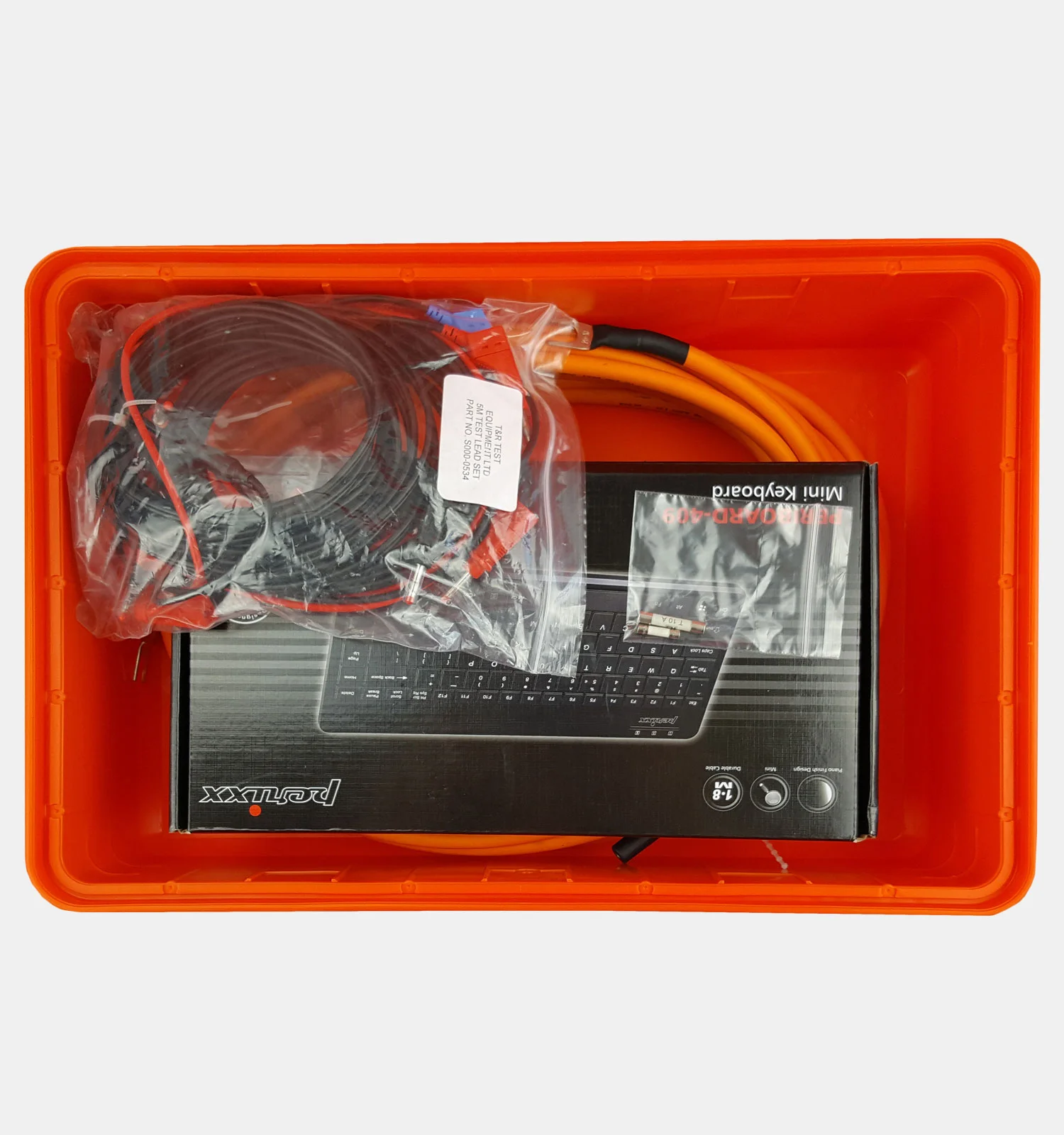

Supplied Accessories

Operating manual
Calibration Certificate
Output lead set
Low current leads
Mains lead
Spare fuses
USB keyboard
USB memory key
Shoulder strap for metal case version
Orange lead set box for metal case version
