DMO200L5 Digital Micro-Ohmmeter

Rated 0 out of 5
(be the first to review)

  • As per DMO200 Test System but supplied with standard 5m output lead set
  • Ultra lightweight (6.9kg)
  • 1-200Adc test current with <2.5% ripple
  • 0.1μΩ resolution
  • mV, A, and m/μΩ displayed simultaneously
  • USB memory key for data storage
  • USB keyboard for comment entry
  • Pre-settable test current with three buttons to store user test currents
  • Large back-lit liquid crystal display
  • Universal supply voltage 90-264V
  • Optional current clamp to allows testing of objects with both sides earthed
  • IP rating 54


The DMO200L5 Digital Micro-Ohmmeter is a highly versatile and reliable device designed for precise measurement of low resistances. It excels in various applications, making it suitable for commissioning, maintenance, and production line environments. Additionally, it enables efficient and safe measurement of contact resistances in circuit breakers, switch panels, isolators, and busbar joints. Furthermore, it comes with a standard 5 metre output lead set.

Operating the DMO200L5 Digital Micro-Ohmmeter is remarkably simple. With just a few steps, users can effortlessly select the desired test current and activate the output. The unit offers the convenience of presettable test currents, allowing users to store commonly used settings for quick access. Moreover, range selection is fully automatic, ensuring accurate measurements at all times. The simultaneous display of current, voltage, and resistance provides comprehensive insights. By calculating resistance based on the test current and sense voltage, the unit delivers precise and reliable results. All readings are held on the display even when the output is switched off, facilitating easy reference.

Further enhancing usability and data management, the DMO200L5 features results storage capabilities. Users can conveniently save test results using a USB memory key. Additionally, the unit comes equipped with a USB keyboard. This enables the input of comments that can be stored alongside the readings. This comprehensive approach ensures that results are organized, time-stamped, and saved in a CSV file format, streamlining analysis and record-keeping processes.

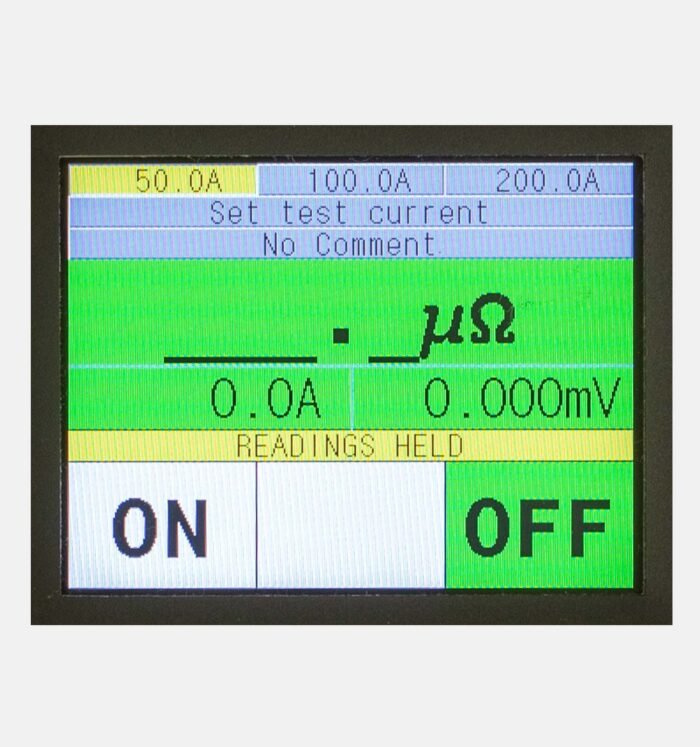

The DMO200L5 Digital Micro-Ohmmeter boasts a bright and clear backlit display with a wide viewing angle, guaranteeing optimal visibility even in various lighting conditions. Users can swiftly assess test results as they appear on the display, providing immediate access to crucial information such as current, sense voltage, and resistance.

Our partners, AcutestAlpha ElectronicsCuthbertson LairdNorwich Instrument Services, and PASS Ltd offer the DMO200L5 in the United Kingdom. If based outside of Great Britain, instrument can be ordered through our worldwide distribution network.

DMO200L5 Operating Manual


DMO200L5 Datasheet


Additional information

Weight6.9 kg
Dimensions360 × 290 × 165 mm
Supplied Accessories

User manual
Calibration certificate
Spare fuse
Mains lead
Output lead set
Earth lead with croc clip
USB key
USB keyboard
Orange carry case
