PT30-10 MK3 Test Set

5.0 (3 reviews)

High-performance DC test set for cable & jointing systems. ±30kVdc output, auto load discharge, versatile voltage selection. Reliable and efficient testing solution.

  • ±30kVdc output voltage
  • 10mA output capability
  • Both voltage and current metered on HV outputs
  • Automatic earth system for dumping capacitive loads
  • HV output plug & socket system
  • Key operated supply switch to prevent unauthorised operation
  • Zero-volt interlock
  • Visual indication of test piece failure
  • Automatic mains voltage selection

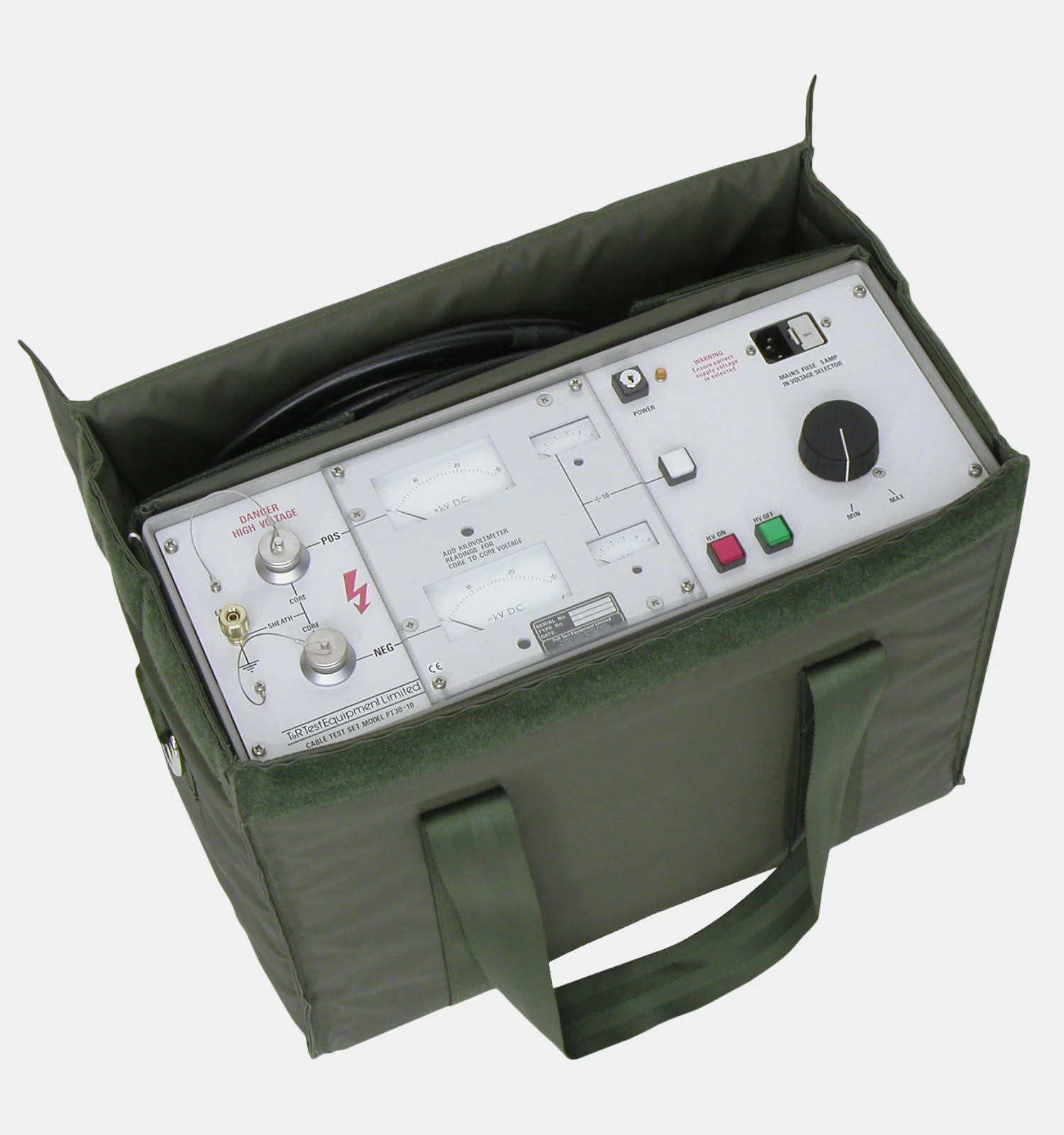

The PT30-10 Mk3 Test Set conducts tests on installed cable and jointing systems. It offers a variable output voltage of up to ±30kVdc and a maximum charging capability of 10mA. It features a zero-volt interlock that prevents switching on the output unless the output control is at zero. Additionally, an automatic load discharge system safely discharges the cable under test when switching off the output or in case of a breakdown.

The internal dumping system has a maximum discharge capacity of 2.5kJ on each output, corresponding to 4µF at 30kV. In the event of a test object failure, the overload circuit automatically shuts off the output voltage and grounds the output using the internal discharge circuit.

The PT30-10 Mk3 comes standard with a manual DP40 discharge probe, enabling safe discharge of higher load capacitances. It also introduces automatic 115/230V mains voltage selection for seamless transition between site voltages.

Two large, linear, analogue instruments marked 0-30kV measure the output voltage. Two additional analogue instruments with a 0-10 scale accurately measure the current for the test object. The HV output utilizes a high-quality plug and socket system for effortless cable replacement.

Our partners, such as AcutestAlpha ElectronicsCuthbertson LairdNorwich Instrument Services, and PASS Ltd offer the PT30-10 Mk3 in the United Kingdom. Additionally, if you are located outside Great Britain, you can conveniently order the product through our worldwide distribution network.

PT30-10 Mk3 Operating Manual


PT30-10 Mk3 Datasheet


Additional information

Weight25 kg
Dimensions471 × 362 × 191 mm
Supplied Accesorries

Operating manual
Calibration certificate
Mains lead
Spare fuse
Carry case
Lead bag
5m HV output leads
5m earth lead
DP40 discharge probe

3 reviews for PT30-10 MK3 Test Set

  1. Andrey Kuznetsov

    Call me old school as I have an older version and still using it with confidence. Some would say it is heavy but didn’t need to visit the gym anymore.

  2. Liam Johnson

    I love this instrument, have been using around the world since I got my hands on it.

  3. Lily Jones

    I have been using this instrument with my colleagues for almost a decade. Bit heavy for me, but fixed it with a trolley. Overall, it has always done the job with only annual calibration required.
